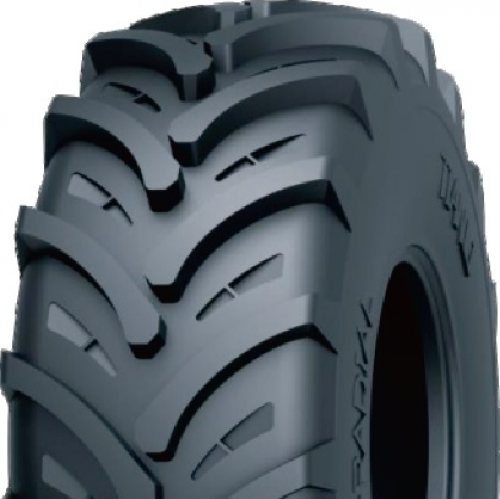

West Lake Tires WT01

Search Results

Model: WT01

Class:

Highlights:

Radial

Description:
- Guaranteed true running and driving comfort up to 50 km/h - Wide contact area for up to 4000 working hours - More and wider lugs in ground and extended wear compound for durability - Excellent driving on and off-the-road - Good self-cleaning abilities due to special angle lugs - Round shoulders for superior ground protection

SIZE	PATTERN	Load / Speed Index	MEASURED RIM WIDTH	UNLOADED DIMENSION		STATIC LOADED RADIUS	ROLLING CIRCRUMFERENCE	INFLATION PRESSURE	Load Capacity (lbs) Speed km/h		TREAD DEPTH (32nd)
			MEASURED RIM WIDTH	Outer Diameter	Section Width	STATIC LOADED RADIUS	ROLLING CIRCRUMFERENCE	INFLATION PRESSURE	Load Capacity (lbs) Speed km/h
			inch	inch	inch	inch+2.5%	inch+2.5%	(psi)	Static	50
380/80R38	WT01	142A8/142B	12	63	15	29	189	35	13437	5842	58
480/80R46	WT01	158A8/158B	16	78	19	36	234	35	21550	9370	61.7
280/85R20	WT01	112A8/112B	10	39	11	18	116	23	5677	2469	52.1
280/85R24	WT01	115A8/115B	10	43	11	19	128	23	6162	2679	52.1
280/85R28	WT01	118A8/118B	10	47	11	21	140	23	6691	2910	52.1
320/85R24	WT01	122A8/122B	11	45	13	20	134	23	7606	3307	54.2
320/85R28	WT01	124A8/124B	11	50	13	23	149	23	8113	3527	54.2
340/85R24	WT01	125A8/125B	12	47	14	22	140	23	8367	3638	56.7
340/85R28	WT01	127A8/127B	12	51	14	24	154	23	8874	3858	56.7
380/85R24	WT01	131A8/131B	12	50	15	22	149	23	9888	4299	59.2
380/85R28	WT01	133A8/133B	13	54	15	25	162	23	10450	4542	59.2
380/85R30	WT01	135A8/135B	13	55	15	25	166	23	11045	4806	58
380/85R34	WT01	137A8/137B	12	59	15	27	176	23	11662	5071	58
420/85R24	WT01	137A8/137B	15	52	17	23	155	23	11662	5071	60.5
420/85R28	WT01	139A8/139B	15	57	17	25	169	23	12324	5357	60.5
420/85R30	WT01	140A8/140B	15	58	17	27	175	23	12677	5512	60.5
420/85R34	WT01	142A8/142B	15	63	17	28	188	23	13437	5842	60.5
420/85R38	WT01	144A8/144B	15	66	17	30	197	23	14198	6173	60.5
460/85R30	WT01	145A8/145B	16	60	18	27	180	23	14705	6393	63
460/85R34	WT01	147A8/147B	16	65	19	29	195	23.2	15587	6779.2	63
460/85R34	WT01	157A8/157B	16	65	19	29	195	46.4	20922	9094.1	63
460/85R38	WT01	149A8/149B	16	68	19	31	205	23.2	16480	7165	63
460/85R38	WT01	151A8/151B	16	68	19	31	205	29	17494	7605.9	63
460/85R42	WT01	151A8/151B	16	73	19	33	221	23	17494	7606	63
520/85R38	WT01	155A8/155B	18	73	21	33	220	23.2	19643	8542.9	64.3
520/85R38	WT01	175A8/175B	18	73	21	33	220	52.2	34976	15212	64.3
520/85R42	WT01	157A8/157B	18	77	21	34	232	23.2	20922	9094.1	64.3
		162A8/162B						34.8	24085	10472
		165A8/165B						52.2	26114	11354
520/85R46	WT01	158A8/158B	18	81	21	36	244	23	21550	9370	64.3
650/85R38	WT01	173D/176A8	20	82	26	37	244	35	36001	15653	75.6
380/90R46	WT01	149A8/149B	12	74	15	34	222	34.8	16480	7165	59.2
380/90R46	WT01	159A8/159B	12	74	15	34	222	58	22178	9645.2	59.2
420/90R30	WT01	142A8/142B	13	59	17	27	176	23.2	13437	5842.2	60.5
420/90R30	WT01	147A8/147B	13	59	17	27	176	34.8	15587	6779.2	60.5
VF380/90R46	WT01	173B/173D	13	74	16	34	222	64	-	14330	59.2
320/85R38	WT01	129A8/129B	11	59	12	-	-	23	9392	4079	54.2
