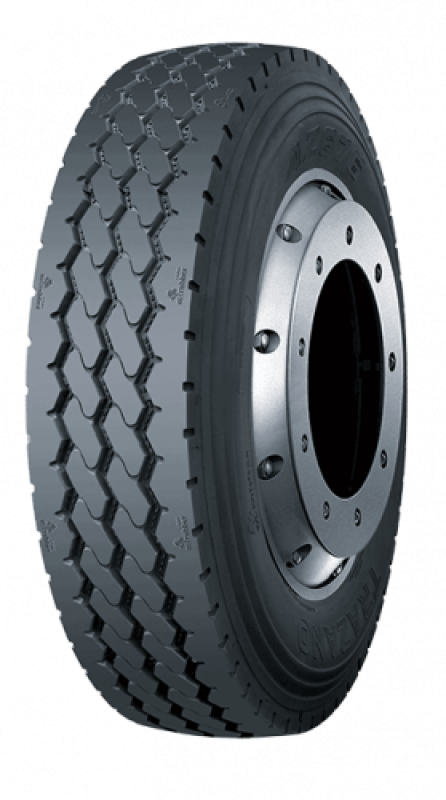

West Lake Tires AZ676

Search Results

Model: AZ676

Class:

Highlights:

Regional

Description:
- 3 circumferential grooves ensures good directional stability, even wear and smooth ride.
- Heavy siping provides good braking stability and high lateral traction on wet and dry surface.
- Improved tread compound helps resist tears and ensure good mileage in on and off road use.
- Sidewall reinforcing ribs protects against impacts and scuffing.

Complete Size	Pattern	Tread Depth	Service Index	Standard Rim	Section Width	Overall Diameter	Max Load (S/D)	Cold Inflation Pressure
Complete Size	Pattern	32nd	Service Index	Standard Rim	Inch	Inch	lbs	PSI
6.50R16-12	AZ676	12	110/105L	5.50F	7.28	29.53	2335/2040	97
7.00R16-14	AZ676	13.9	118/114L	5.50F	7.87	30.51	2910/2600	112
7.50R16-14	AZ676	15.1	122/118L	6.00G	8.46	31.69	3305/2910	112
8.25R16-16	AZ676	17.6	128/124L	6.50H	9.25	33.66	3970/3525	112
8.25R20-16	AZ676	18.9	139/137K	6.50	9.29	38.35	5360/5070	135
9.00R20-16	AZ676	19.6	144/142K	7.00	10.20	40.12	6175/5840	130
10.00R20-16	AZ676	20.2	146/143K	7.50	10.94	41.50	6610/6005	120
10.00R20-18	AZ676	20.2	149/146J	7.50	10.94	41.50	7160/6610	135
11.00R20-18	AZ676	20.2	152/149K	8.00	11.54	42.72	7825/7165	135
12.00R20-18	AZ676	22.1	154/151K	8.50	12.40	44.29	8270/7610	120
12.00R20-20	AZ676	22.1	156/153J	8.50	12.40	44.29	8820/8050	131
11R22.5-14 TL	AZ676	21.2	144/142M	8.25	10.98	41.50	6175/5840	105
11R22.5-16 TL	AZ676	21.2	148/145M	8.25	10.98	41.50	6940/6390	123
11R22.5-18 TL	AZ676	21.2	149/146L	8.25	10.98	41.50	7160/6610	135
12R22.5-18 TL	AZ676	20.2	152/149L	9.00	11.81	42.72	7830/7160	135
295/80R22.5-16 TL	AZ676	20.2	150/147M	9.00	11.73	41.10	7390/6780	120
295/80R22.5-18 TL	AZ676	20.2	152/149L	9.00	11.73	41.10	7830/7160	131
315/80R22.5-18 TL	AZ676	20.2	154/151M(156/150L)	9.00	12.28	42.36	8270/7610	120
