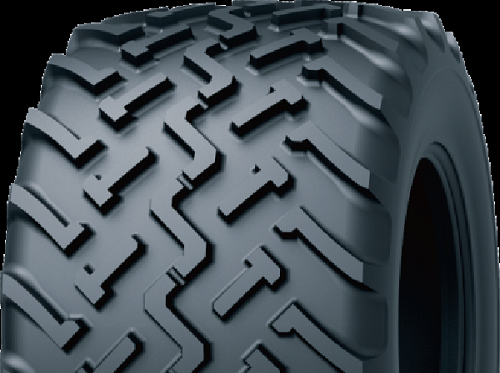

West Lake Tires WT09

Search Results

Model: WT09

Class:

Highlights:

Grassking/Implement Tyres

Description:
- Wide contact area for even ground pressure distribution at low inflation pressure - 65 km/h approval - Superior ground protection on grassland and other surfaces - Well balanced pattern design for a great variety of applications - Suitable for municipality vehicles, two-axle mower and multipurpose transporter - Excellent drive comfort even on long distances

SIZE	PATTERN	Load / Speed Index	MEASURED RIM WIDTH	UNLOADED DIMENSION		STATIC LOADED RADIUS	ROLLING CIRCRUMFERENCE	INFLATION PRESSURE	Load Capacity (lbs) Speed km/h		TREAD DEPTH (32nd)
			MEASURED RIM WIDTH	Outer Diameter	Section Width	STATIC LOADED RADIUS	ROLLING CIRCRUMFERENCE	INFLATION PRESSURE	Load Capacity (lbs) Speed km/h
			inch	inch	inch	inch+2.5%	inch+2.5%	(psi)	Static	65
19.0/45R17	WT09	137D	16.00	34	18.8	15.6	101	58	11662	5070.626	22.7
31×15.50R15	WT09	122B	13LB	31	15.4	14.0	94	41	7606	3307(50km/h)	23.9
425/55R17	WT09	137D	13.00	35	16.6	15.7	105	51	11662	5070.626	25.2
480/50R20	WT09	140D	16.00	39	18.8	17.6	118	44	12677	5511.55	25.2
500/45R22.5	WT09	146D	16.00	40	19.4	18.3	122	58	15212	6613.86	25.2
500/50R17	WT09	146D	16.00	36	19.4	16.3	109	58	15212	6613.86	22.7
